Solar Pump Inverters and Products
Solar Water Pump Inverter and Solar Pump Product System
SolarSeeker supplies solar water pump inverter products and matched solar pump system components for distributors, pump dealers, irrigation contractors, EPC teams and OEM partners.
Start here if you need a 220V solar pump inverter, 380V solar pump inverter, single to three phase solar pump inverter, PV pump controller, submersible well water pump, solar pump cabinet or solar powered well pump kit.
Start Here
Choose the right SolarSeeker product path
A solar water pumping project may need only an inverter, or it may need a controller, pump, cabinet and accessories. The right starting point depends on the pump motor, water source, installation site and buyer role.
Solar Pump Inverters
SP1-SP4 cover 220V, 380V and single to three phase solar pump inverter requirements.
View inverter rangePump Controllers
SP5 and SP6 support PV pump controller, submersible pump controller and OEM control projects.
View controllersSubmersible Pumps
Choose a submersible well water pump when the buyer needs the pump and inverter matched together.
Choose well pumpsSolar Pump Cabinets
Use a solar pump cabinet for IP65 protection, wiring, breakers, labels and outdoor system integration.
View cabinetsSolar Pump Kits
Solar powered well pump kits combine panel, inverter or controller, pump and accessories.
View kitsQuick Answer

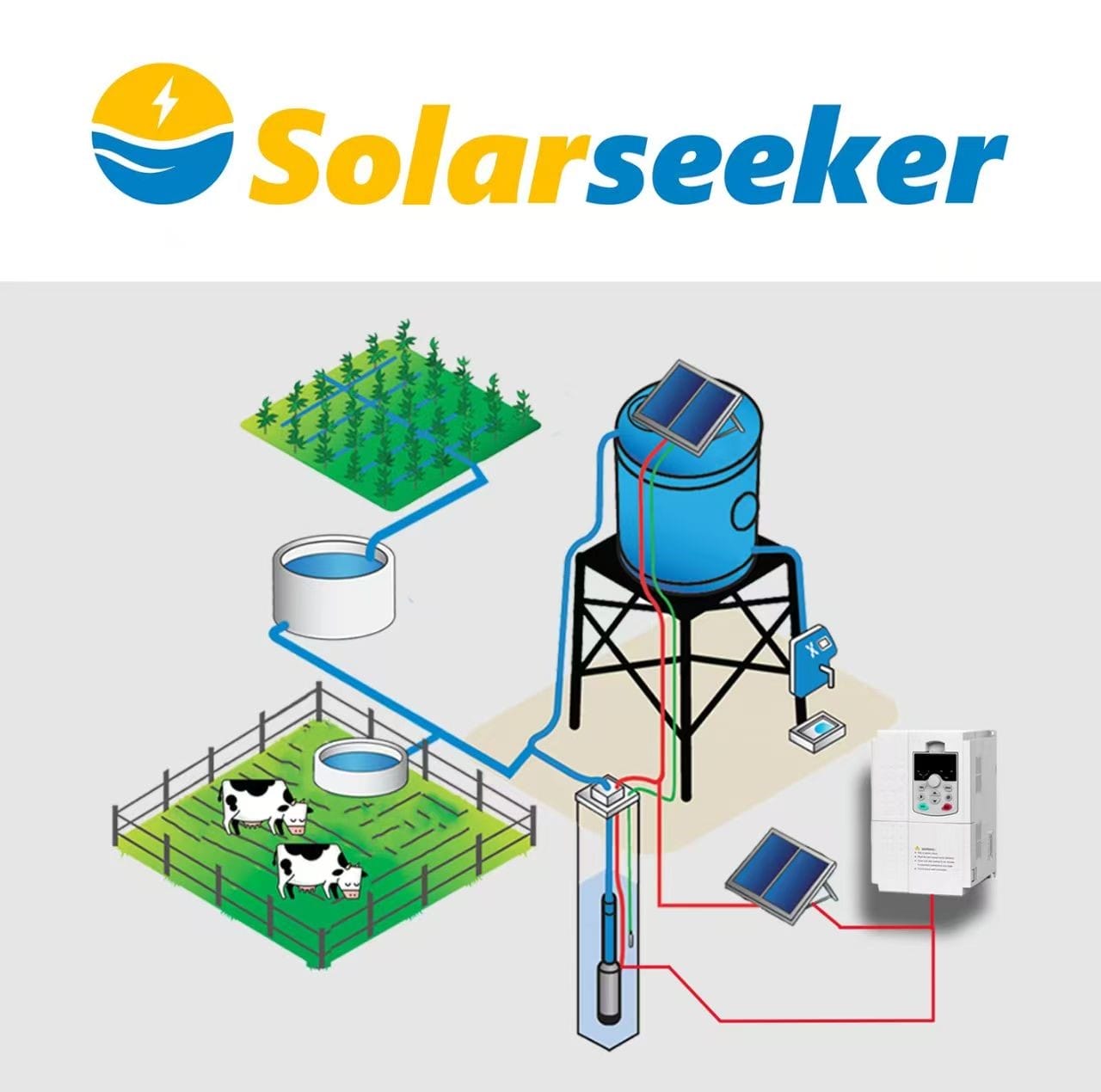

What is a solar water pump inverter?
A solar water pump inverter converts DC power from solar panels into AC output for a pump motor. It uses MPPT control to follow sunlight changes, adjusts motor speed, and protects the pump during low water, overload, overvoltage or unstable input conditions.
For professional irrigation, deep well, livestock water and remote water supply projects, the inverter should be selected from pump voltage, phase, rated current, head, flow and PV array voltage.
MPPT solar pump inverter
Tracks available solar power and keeps the pump running smoothly as sunlight changes through the day.
Pump protection
Supports dry-run protection, overload protection, fault display and automatic start-stop logic.
Startup waiting function
Waits for enough solar energy before starting, reducing repeated start-stop cycles in weak sunlight.
Simplified field setup
SolarSeeker reduces complex parameters so installers can commission systems faster on farms and remote sites.
Inverter Range
Choose solar pump inverters by voltage and phase
Start with the pump nameplate. Voltage, phase, power, rated current, well depth and water demand decide whether the project should use a 220V solar pump inverter, 380V solar pump inverter or single to three phase solar pump inverter.
Voltage Category
220V Solar Pump Inverter
For SP1 220V single phase, SP3 220V three phase, village wells, small farms, pond aeration and Southeast Asian irrigation projects.
Open 220V categoryVoltage Category
380V Solar Pump Inverter
For SP4 three phase deep wells, high head pumping, industrial transfer, large solar irrigation and cabinet-based EPC systems.
Open 380V categoryPhase Conversion
Single to Three Phase Inverter
For SP2 projects where a single phase supply or PV input needs to drive a three phase water pump motor.
Open phase conversionSP1 220V Single Phase
For small wells, farms, ponds and single phase AC pump applications.
View SP1SP2 Phase Conversion
For single phase to three phase solar pump inverter projects.
View SP2SP3 220V Three Phase
For 220V three phase pumps in commercial pumping and field water supply.
View SP3SP4 380V Three Phase
For deep well solar pump inverter, large irrigation and industrial pump projects.
View SP4Complete System
When you need more than an inverter
Some buyers already have a pump and only need a solar pump inverter. Others need the controller, submersible pump, cabinet, sensors, wiring and accessories matched before shipment.
SP5 Custom PV Pump Controller
Use SP5 when the project needs PV pump controller customization, special input or output voltage, OEM branding, private label work, or non-standard pump control logic.
Open SP5 custom controllerSP6 IP55 Submersible Pump Controller
Use SP6 for IP55 submersible pump controller projects in dusty, humid or remote pump sites where simple control and outdoor protection matter.
Open SP6 IP55 controllerIP65 Solar Pump Cabinet
Use a solar pump control cabinet for breakers, surge protection, wiring, terminals, labels, outdoor enclosure protection and repeatable EPC delivery.
Open cabinet optionsSolar Powered Well Pump Kits
Use complete kits when the buyer wants panels, inverter or controller, submersible pump and accessories checked as one solar well pump system.
Open well pump kitsSelection Table
Which SolarSeeker product should you start with?
Use this first filter before asking for a quotation. For exact model selection, send pump power, voltage, rated current, flow, head, well depth and project location.
| Project condition | Start with | Best product path | Next page |
|---|---|---|---|
| You know pump voltage and phase | Solar pump inverter | 220V, 380V, or single-to-three-phase selection | Inverter categories |
| Three phase pump but no reliable three phase grid | SP2 phase conversion | Single phase to three phase solar pump inverter | Phase conversion |
| Custom voltage, OEM label or special controller logic | SP5 | Custom PV pump controller | PV pump controller |
| Dusty or humid submersible pump site | SP6 | IP55 submersible pump controller | SP6 controller |
| Outdoor EPC cabinet, breakers and wiring needed | Cabinet layout | IP65 solar pump cabinet | Solar pump cabinet |
| Buyer wants pump, inverter, panels and accessories together | Complete kit | Solar powered well pump kits | Well pump kits |
Before Quotation
What B2B buyers should confirm before choosing a solar pump product
A solar pump quotation is more accurate when the product path is selected from real site data. The same pump power can need different inverters, controllers, PV array sizes and cabinet protection depending on voltage, water source, climate and daily water demand.
Send Selection DataPump nameplate
Voltage, phase, power, rated current and frequency decide the inverter or controller range.
Head and flow
Well depth, pipe distance, daily water target and pump curve affect model selection.
PV array voltage
Solar panel series and parallel design must stay inside the inverter MPPT and DC input range.
Site protection
Desert, dust, rain, humidity, cable distance and cabinet access should be planned before shipment.
Applications
Solar pumping applications and product paths
Use application pages when the question starts from the water job rather than the product model: irrigation, deep wells, remote villages, livestock water, desert pumping or drainage.
Solar irrigation system
For rice farms, orchards, drip irrigation, sprinkler systems and farm water supply.
Deep well solar pump
For boreholes, high head pumping, 380V deep well pump systems and submersible pumps.
Desert solar water pumping
For high temperature, dusty sites, off-grid desert water supply and cabinet protection planning.
Livestock water supply
For remote farms, cattle water points, grassland projects and daytime solar pumping.
Remote water supply
For villages, off-grid pump stations, isolated wells and maintenance-sensitive sites.
Solar drainage pump system
For flood prevention, pond drainage, municipal pumping and standby water control.
Project Proof
Solar pump inverter cases from real water projects
See how similar pump sites were matched with SolarSeeker inverters, cabinets and pump systems, from irrigation and livestock water to desert wells, village supply and industrial pumping.

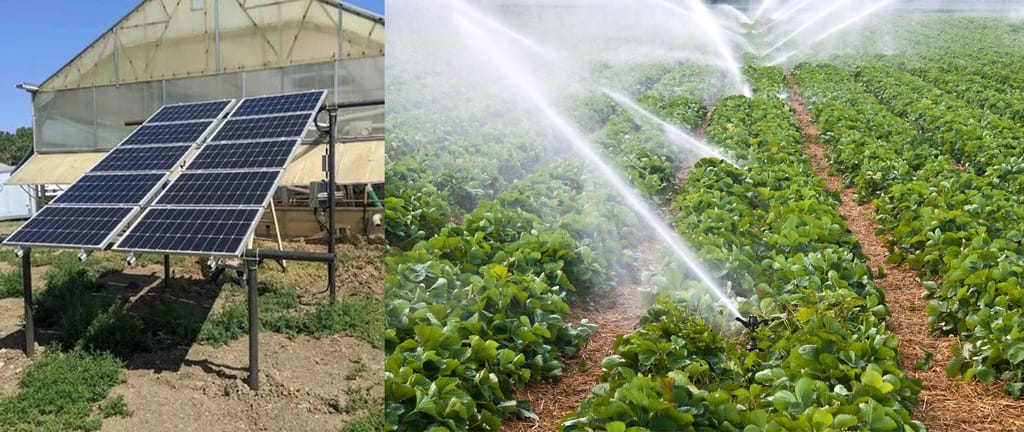

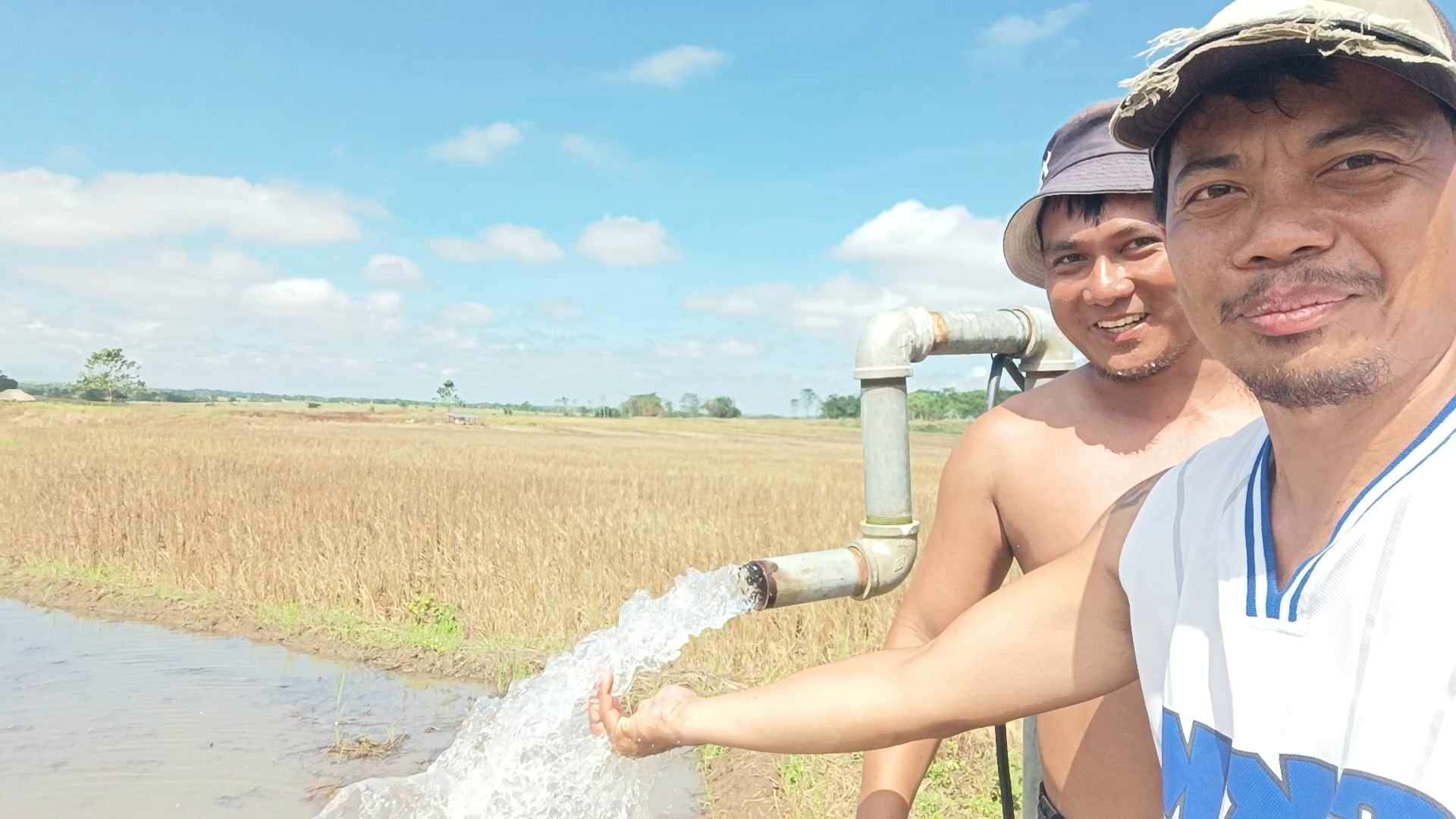

Philippines irrigation
Rice farm solar irrigation
A practical reference for farm irrigation buyers choosing inverter and pump capacity.
Morocco desert site
SP4005 water output test
Useful for desert solar pumping, MPPT performance and dust protection planning.

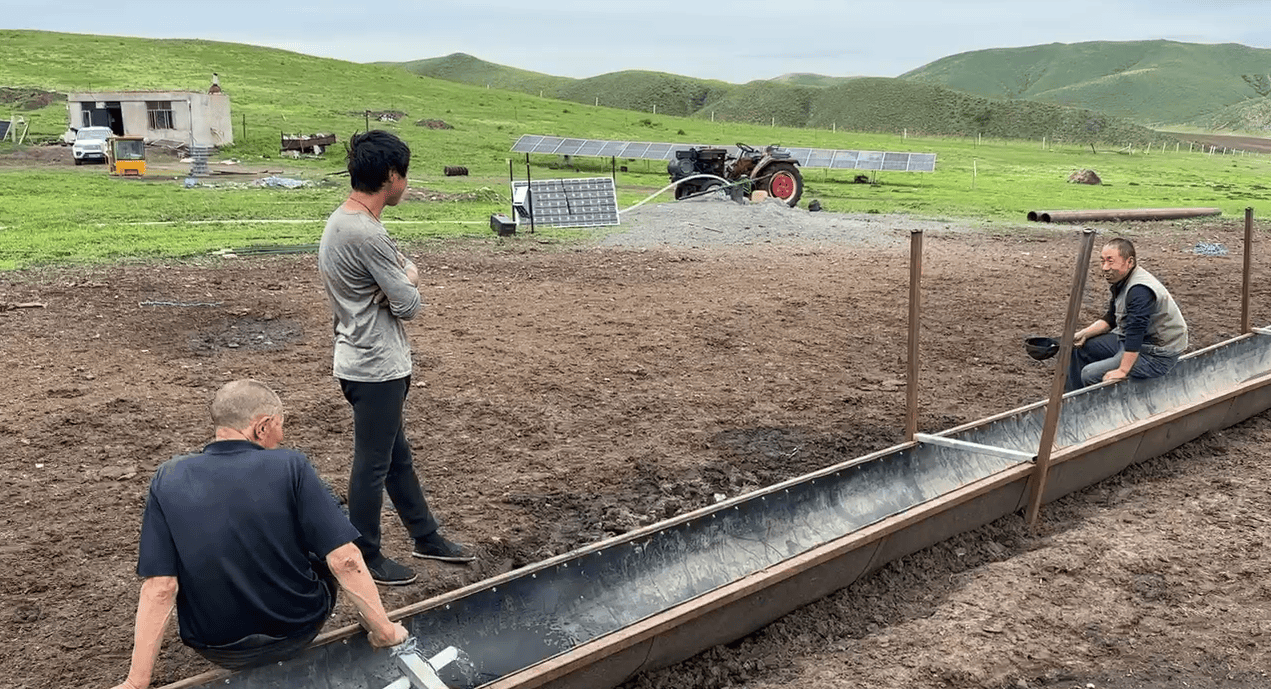

Livestock water
Grassland water point
Reference for remote cattle water, solar panels, cabinet and 380V pump matching.

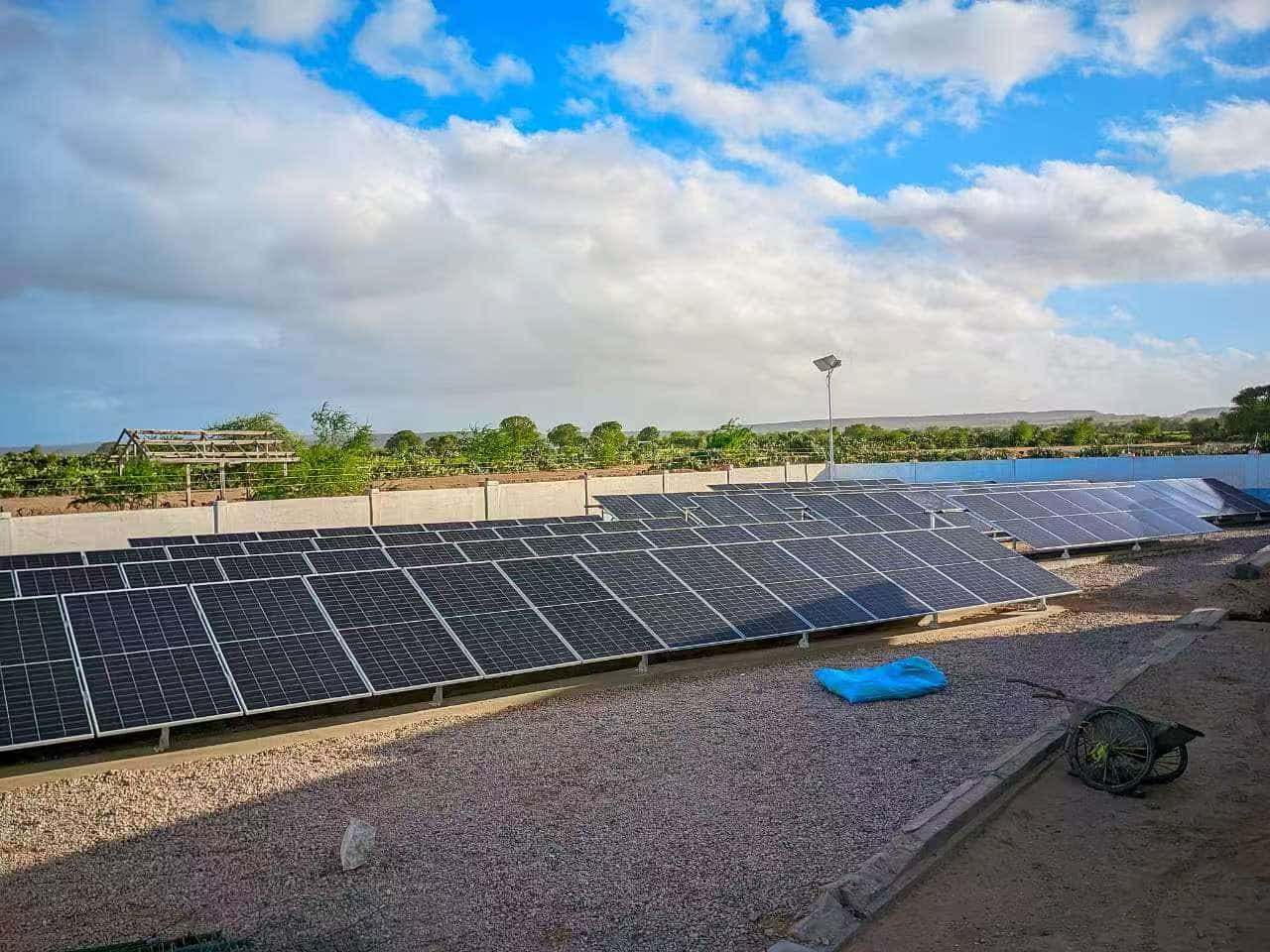

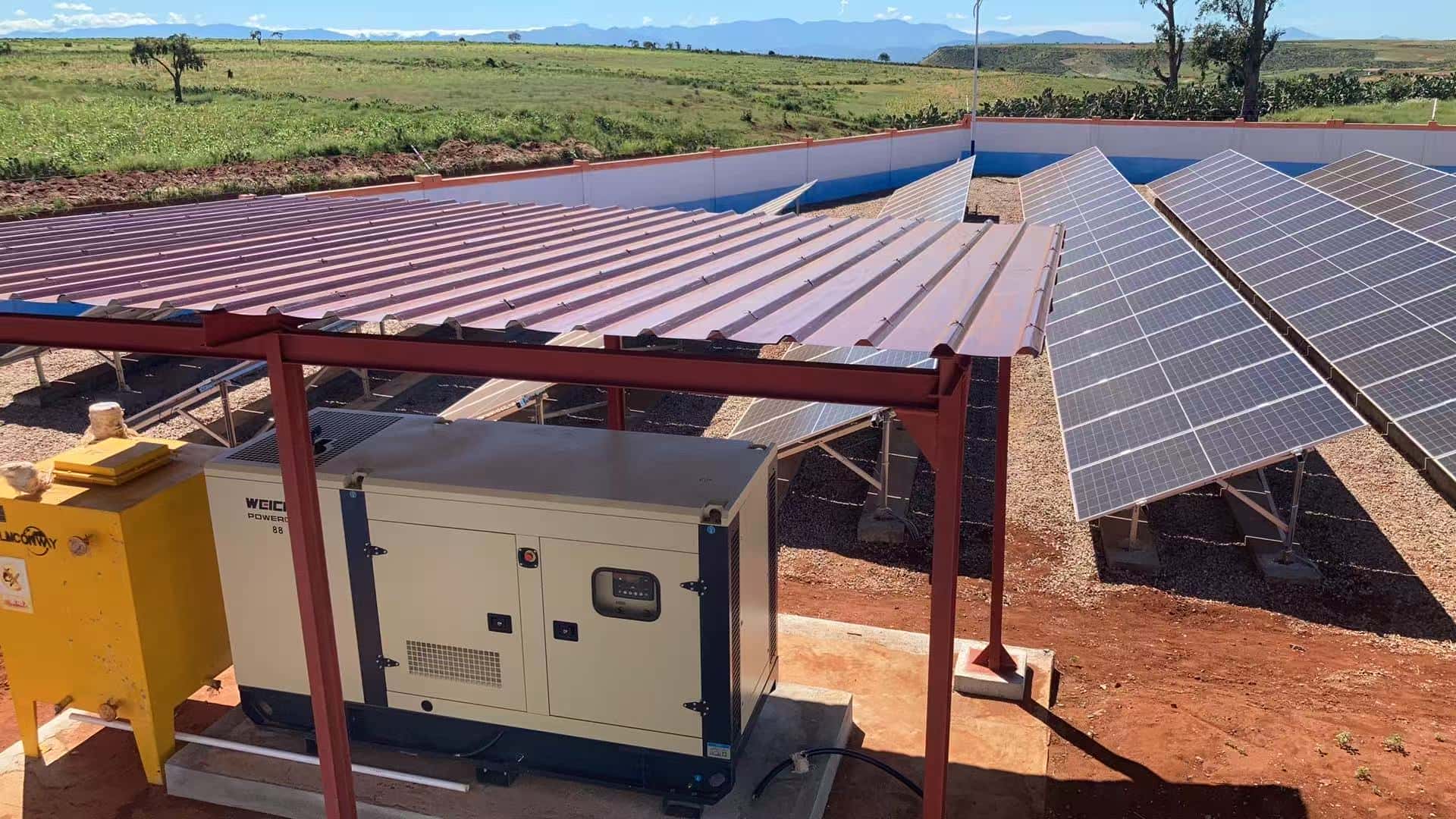

Madagascar water supply
Large pump station
For buyers comparing 380V inverter, pump station and multi-site water supply projects.
Regional Buyers
Regional product selection depends on voltage, climate and water source
SolarSeeker works with B2B solar pumping buyers in Southeast Asia, Africa, the Middle East, South America and China domestic installations. The same solar pump inverter range can be configured differently for rice farms, desert wells, livestock water, village supply or industrial transfer.
For Southeast Asia, common questions involve 220V pumps, irrigation seasons, easy local maintenance and distributor stock. For Africa and Middle East projects, buyers often ask about 380V deep well pumps, high temperature operation, dust protection and solar pump cabinets.
Southeast Asia
Solar irrigation system Philippines, Indonesia, Vietnam, Thailand and Malaysia pump projects.
Africa
Off-grid water pumping, village supply, livestock water and deep well pump projects.
Middle East
Desert solar water pumping, high temperature inverter operation and dustproof cabinet planning.
South America
Farm irrigation, orchard water supply and remote pump systems for seasonal water demand.
Manufacturer Support
Your solar pump inverter manufacturer and technical partner
SolarSeeker supports distributors, pump dealers, EPC contractors and OEM partners with model selection, installation guidance, cabinet integration, controller customization and project troubleshooting.
Compared with many general-purpose drives, SolarSeeker pump products are built around solar water pumping field needs: wide DC input design, startup waiting logic, simplified operation, pump protection and high-temperature operation.
Quotation checklist
- Pump nameplate photo with voltage, phase, power and rated current
- Water source, well depth, pump head, flow and daily water target
- Solar panel quantity, Voc, Vmp and planned series-parallel connection
- Site country, climate, dust, rain, humidity and cabinet requirement
- OEM label, custom voltage, accessories or complete kit requirement
Solar water pump inverter and product system FAQ
Should I choose a solar pump inverter or a solar pump controller?
Choose a solar pump inverter when you need to drive an AC pump motor with MPPT, frequency control and pump protection. Choose a solar pump controller when the project needs dedicated pump control, custom voltage, IP55 submersible pump control or OEM logic.
How do I choose 220V, 380V or single to three phase?
Check the pump motor nameplate first. A 220V single phase pump usually starts from SP1, a 220V three phase pump from SP3, a 380V three phase pump from SP4, and a three phase pump with single phase supply conditions from SP2.
Can SolarSeeker supply the pump, cabinet and accessories together?
Yes. SolarSeeker can help match solar pump inverter, PV pump controller, submersible well water pump, IP65 solar pump cabinet, panels and accessories as a complete solar powered well pump kit.
What information should I send for model recommendation?
Send pump voltage, phase, power, rated current, head, flow, well depth, daily water demand, solar panel data, project country and installation environment. A pump nameplate photo is the fastest starting point.
Does SolarSeeker support OEM solar pump inverter projects?
Yes. SolarSeeker supports OEM solar pump inverter and PV pump controller projects, including label, documentation, cabinet layout, custom voltage work and distributor project packaging.
Before Quotation
Send These Details Before Quotation
A pump nameplate photo and a few site details are usually enough for SolarSeeker to check the right inverter, controller, cabinet or kit path before you place an order.
Fewer back-and-forth messages before price confirmation
Lower risk of wrong voltage, phase or PV input matching
Easier support for distributors, EPC teams and OEM buyers
Pump nameplate photo
Voltage, phase, power, rated current and frequency. This is the fastest way to avoid choosing the wrong inverter range.
Head, flow and water target
Well depth, vertical head, pipe distance, required flow rate and daily water demand help us check real pump load.
Solar panel data
Panel power, Voc, Vmp, quantity and planned series-parallel connection must match the MPPT and DC input range.
Water source and site country
Deep well, river, pond, tank, farm irrigation or village water supply can lead to different product and protection choices.
Installation environment
Tell us about dust, humidity, rain, heat, cable distance and whether an IP55 controller or IP65 cabinet is needed.
Buyer role and order scope
Distributor stock, EPC project, OEM order, spare parts, accessories or complete kit requirements affect quotation details.
Simple message format: pump nameplate photo + head/flow + panel data + country + site environment + quantity. If some data is missing, send what you have first and SolarSeeker can help check the rest.
Need a solar pump inverter, controller, pump, cabinet or complete kit?
Send the pump nameplate, water demand and site condition. SolarSeeker can recommend the right product path before you commit to a model.
