Shanghai / Fish Pond Aeration
1.5kW Solar Inverter for a Floating Pond Aeration System in Shanghai

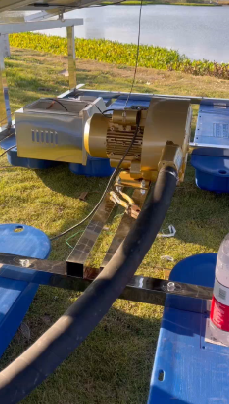

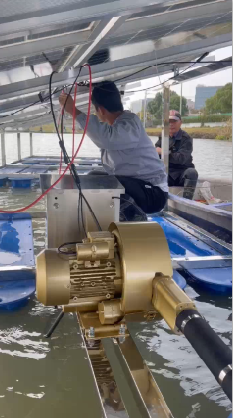

A fish pond aerator needs power at the water surface, not only beside a dry pump room. In this Shanghai project, the customer used floating solar panels on foam-supported brackets to supply a 220V single-phase aeration motor.
The customer is a professional engineer and selected SolarSeeker after comparing inverter quality and service. The project focused on three practical details: single-phase motor control, wet pond-side installation, and using solar power to reduce aeration running cost.
Location
Shanghai, China
Application
Pond aeration
Motor
220V single phase
Power class
1.5kW aerator
Mounting
Floating PV support

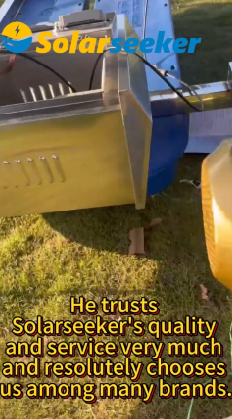

Field View
The installation had to work around water, humidity, and a single-phase aerator.
Fish pond aeration is different from a normal well pump project. The load may sit in a humid area, the PV panels may need special mounting, and the inverter must run a 220V single-phase motor stably.
Why The Inverter Choice Mattered
Many pond aerators are 220V single-phase motors, and not every solar pump inverter can drive them well.
Aquaculture users often want solar aeration because daytime oxygen demand and sunlight can overlap. The difficult part is control. A normal inverter may struggle with 220V single-phase motors, especially when the motor capacitor and starting behavior are involved.
SolarSeeker’s single-phase 220V inverter range can support this type of load and extends up to 7.5kW for similar single-phase aeration applications. For this Shanghai 1.5kW pond system, the inverter provided solar conversion and motor control while the installation team considered waterproof and moisture-resistant placement.
The control strategy also prepared low-frequency and dry-run style protection logic for pump and aeration projects where abnormal operating conditions can shorten equipment life.
Technical Notes
What this pond aeration layout confirms
Application first
The system was built for fish pond oxygen supply, so panel placement and moisture protection were as important as inverter sizing.
Single-phase motor control
The load used a 220V single-phase aeration motor, a common pain point for solar inverter selection in aquaculture projects.
Wet-site protection
For pond projects, the inverter and wiring should be protected from rain splash, condensation, and service damage.
Plan A Similar Pond System
Check these details before selecting an aerator inverter
Confirm the aerator motor type
Single-phase 220V motors need a suitable inverter, not only a standard three-phase pump controller.
Design enclosure and wiring protection
Wet pond-side work needs moisture-resistant cabinet planning and service-friendly cable routing.
Match the inverter family to the load
SolarSeeker can check SP1/SP2/SP3/SP4 selection after reviewing power, voltage, and site photos.
FAQ
Questions from pond aeration installers
Can a solar pump inverter drive a 220V single-phase aerator?
Yes, but the inverter must be designed for the motor type. Many pump inverters are built for three-phase motors, so the single-phase requirement should be checked before shipment.
Why use floating solar panels for pond aeration?
Floating support can place the PV array closer to the aeration area when land space or cable routing is limited. The structure must still be checked for stability and maintenance access.
What site photos help SolarSeeker check a pond project?
Send the aerator nameplate, pond layout, proposed PV mounting area, cable distance, and cabinet location. These details help confirm inverter model and protection plan.
Need solar power for a pond aerator?
Send the aerator nameplate, pond photos, and expected running time. SolarSeeker will check motor type, inverter model, PV layout, and cabinet protection.
