Morocco Project Case / SP4007
Marrakech Morocco Solar Pump Inverter Project for a 7.5HP Pond Pump
Ahmed, a civil engineer in Marrakech, replaced a diesel pond-pump setup with a SolarSeeker SP4007 380V solar pump inverter, a 7.5HP three-phase submersible pump, and 16 pieces of 600W solar panels for farm water management.
|
7.5HP three-phase submersible pump
|
16 x 600W PV array
|
Pond water for agricultural use
What Happened on Site
Ahmed was not trying to buy a solar product. He was trying to stop losing time to a diesel pump.
The pond was part of a family agricultural property near Marrakech. In summer, water demand rose while the old diesel pump brought the usual problems: fuel cost, noise, refueling, and the risk of stopping when irrigation work was urgent.
Ahmed had an engineering background, so the discussion could not stay at the level of “use solar panels and a pump.” The system still had to match a real three-phase motor, handle outdoor farm conditions, and give enough operating time during strong but dusty sunlight.
SolarSeeker selected the SP4007 solar pump inverter for the 7.5HP pond pump and paired it with 16 pieces of 600W panels. After commissioning, the system was running from the pond, with the inverter cabinet, pump-side piping and water outlet all visible on site.
What a similar buyer can check
- Is your pump also 380V three phase?
- Do you have enough PV capacity and mounting space for the daily water demand?
- If your project has a similar 380V pump, SolarSeeker can check the matching before shipment.
Technical Configuration
SP4007 solar pump inverter setup used in Morocco
Before quoting a similar pond or irrigation system, start with the pump load, voltage, PV array and expected water output. Those four items decide whether the inverter model is close or completely wrong.
| Location | Marrakech, Morocco |
|---|---|
| Customer profile | Ahmed, a civil engineer managing water supply for a family agricultural property |
| Application | Pond water pumping for farm irrigation and agricultural water management |

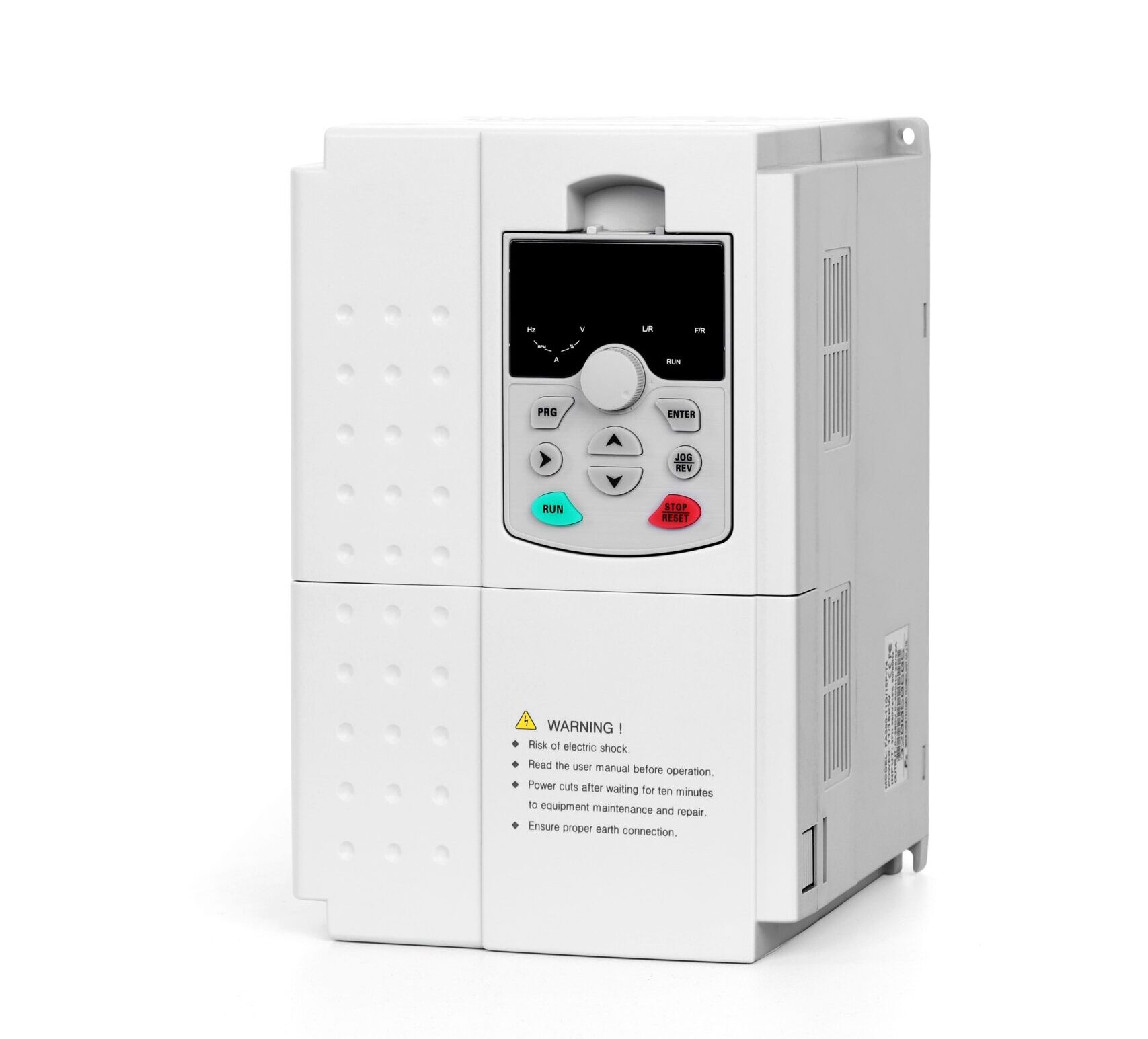

| Solar pump inverter | SolarSeeker SP4007, 7.5kW, 380V, three-phase output |
| Pump load | 7.5HP three-phase submersible pump for pond use |

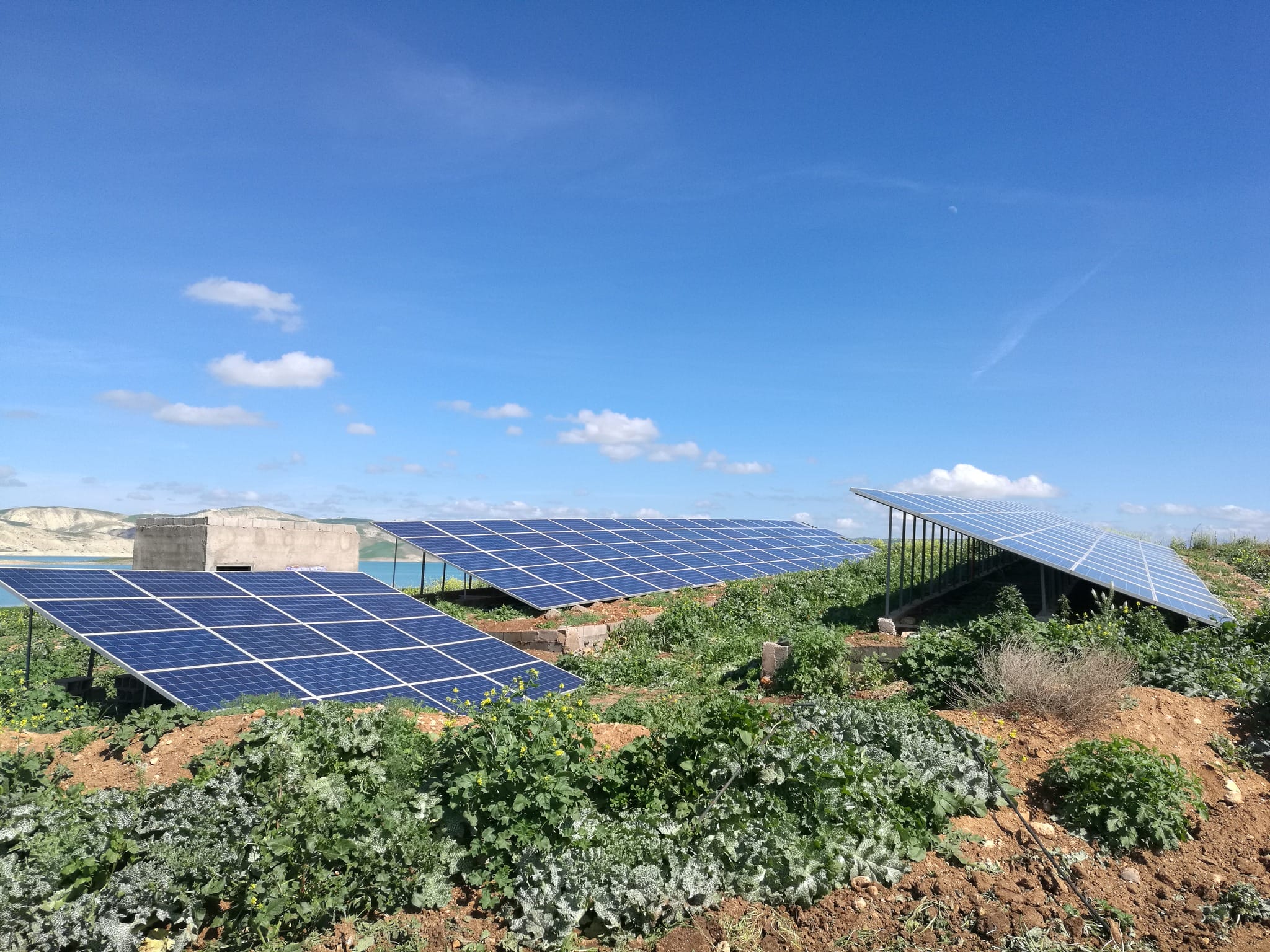

| PV array | 16 pieces of 600W solar panels, 9.6kW listed total capacity |
| Site condition | Semi-arid farm environment with high sunlight, dust exposure and outdoor equipment protection needs |
| Observed field result | The site video and photos show the installed system and visible pond water output after commissioning. |
Site Result

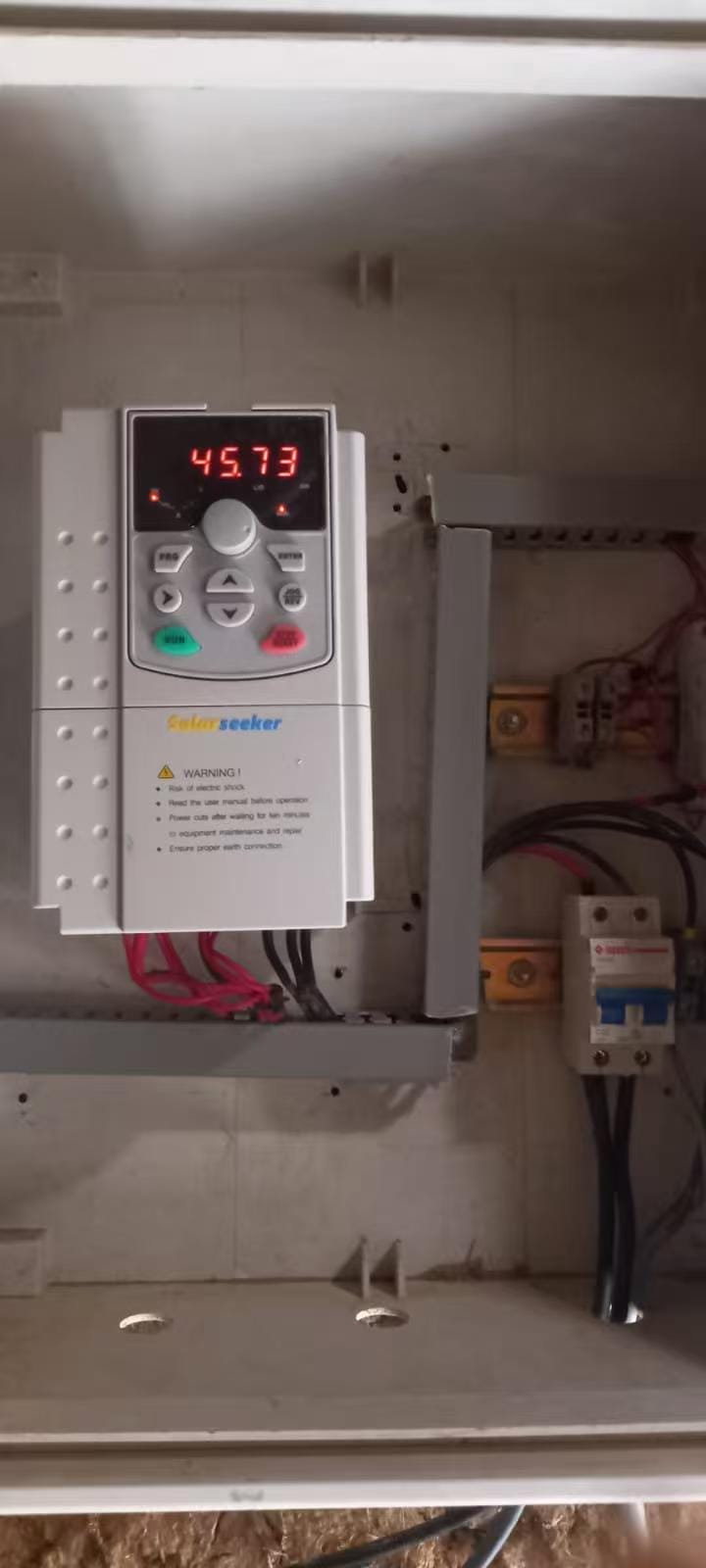

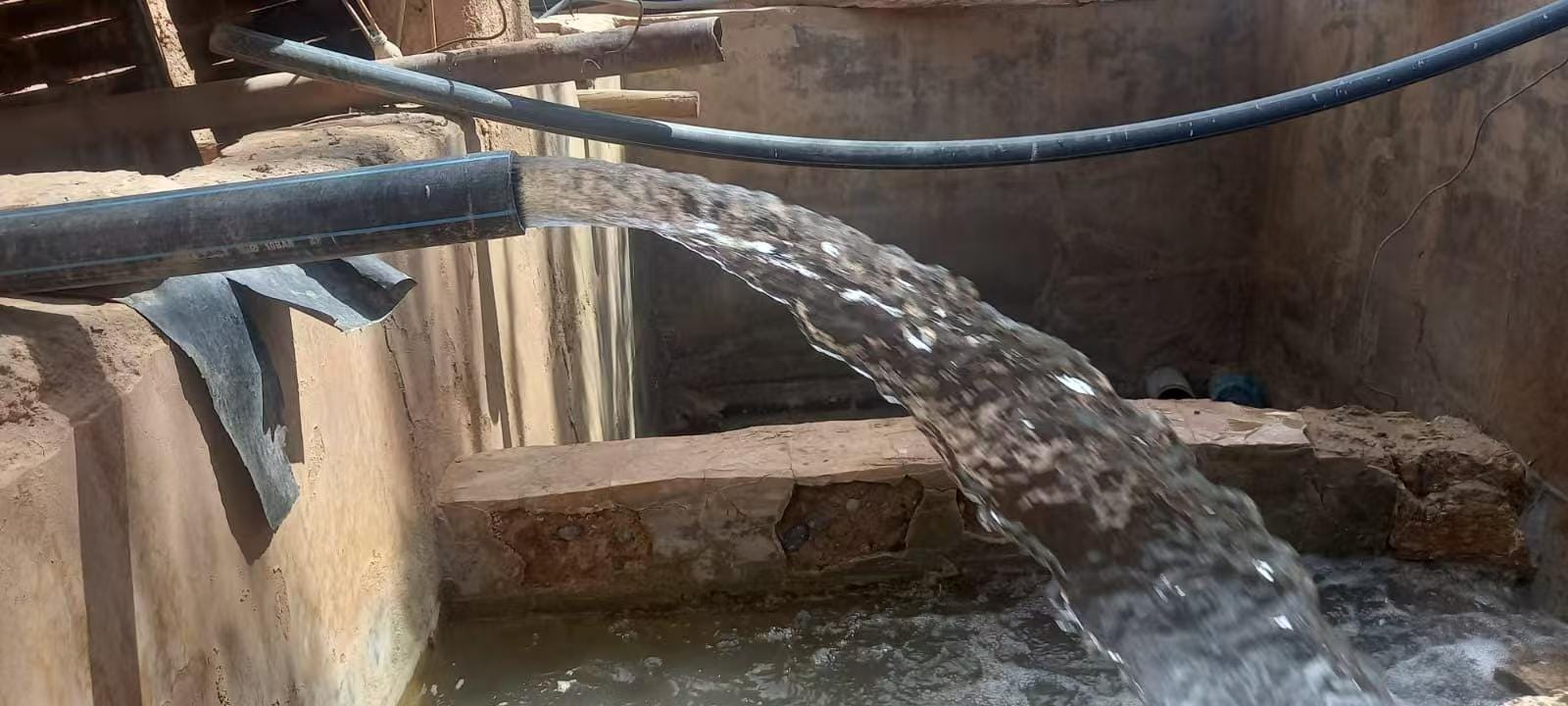

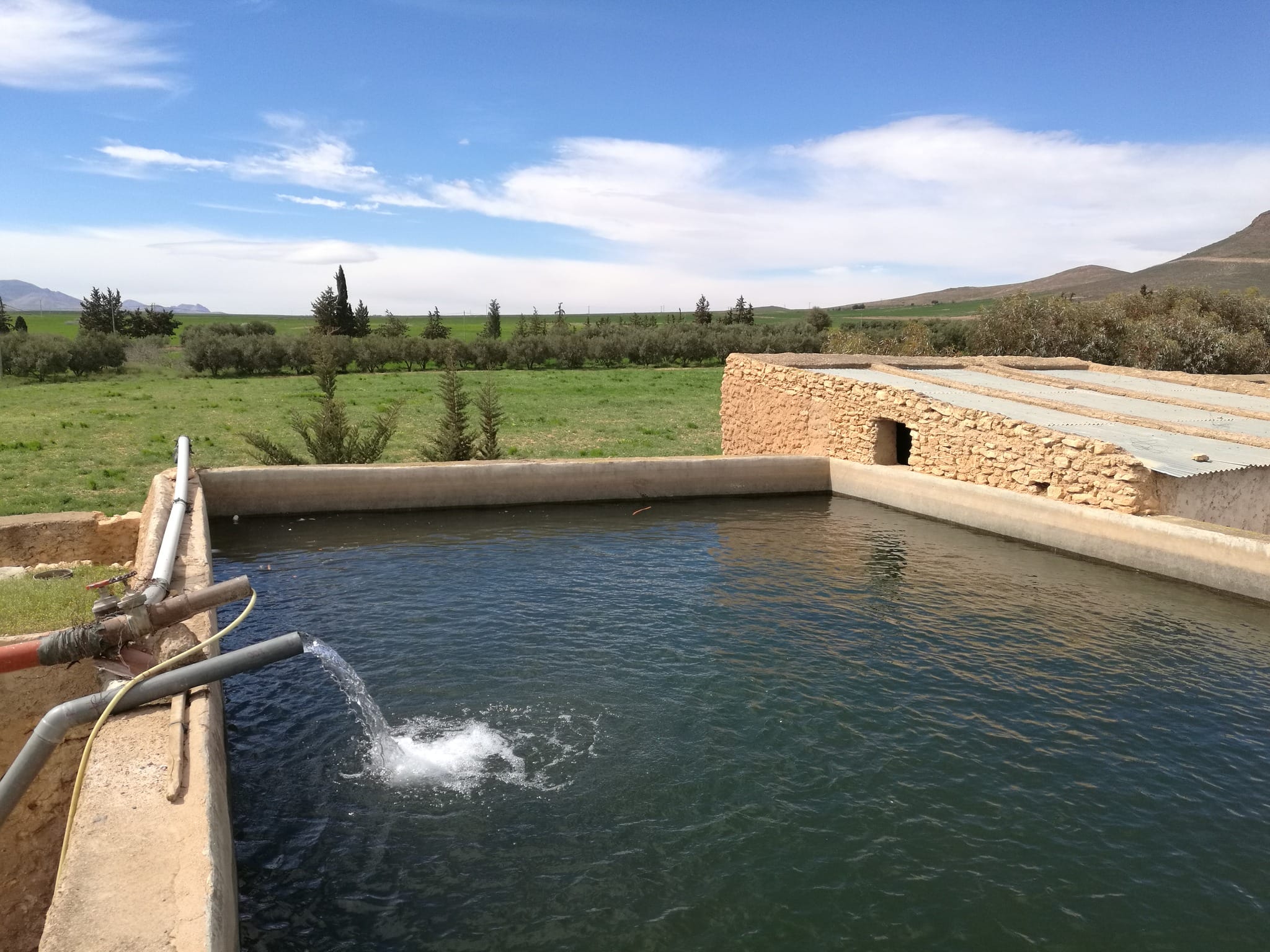

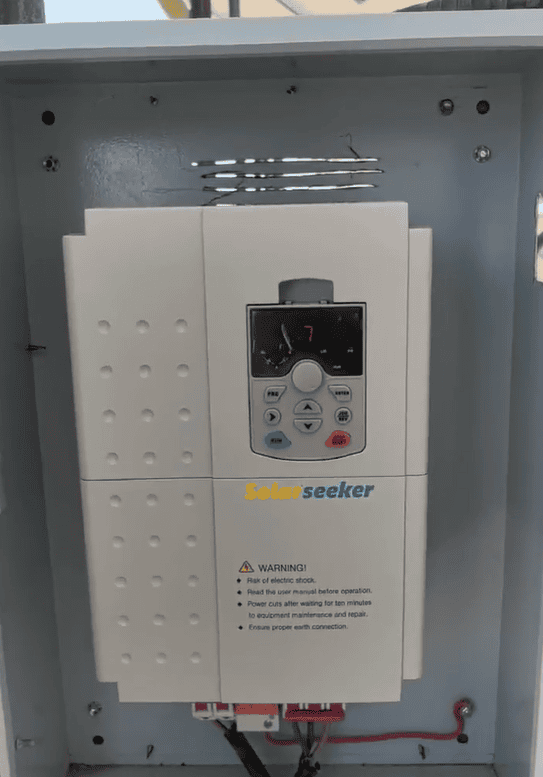

Water output, pump connection and the SP4007 cabinet

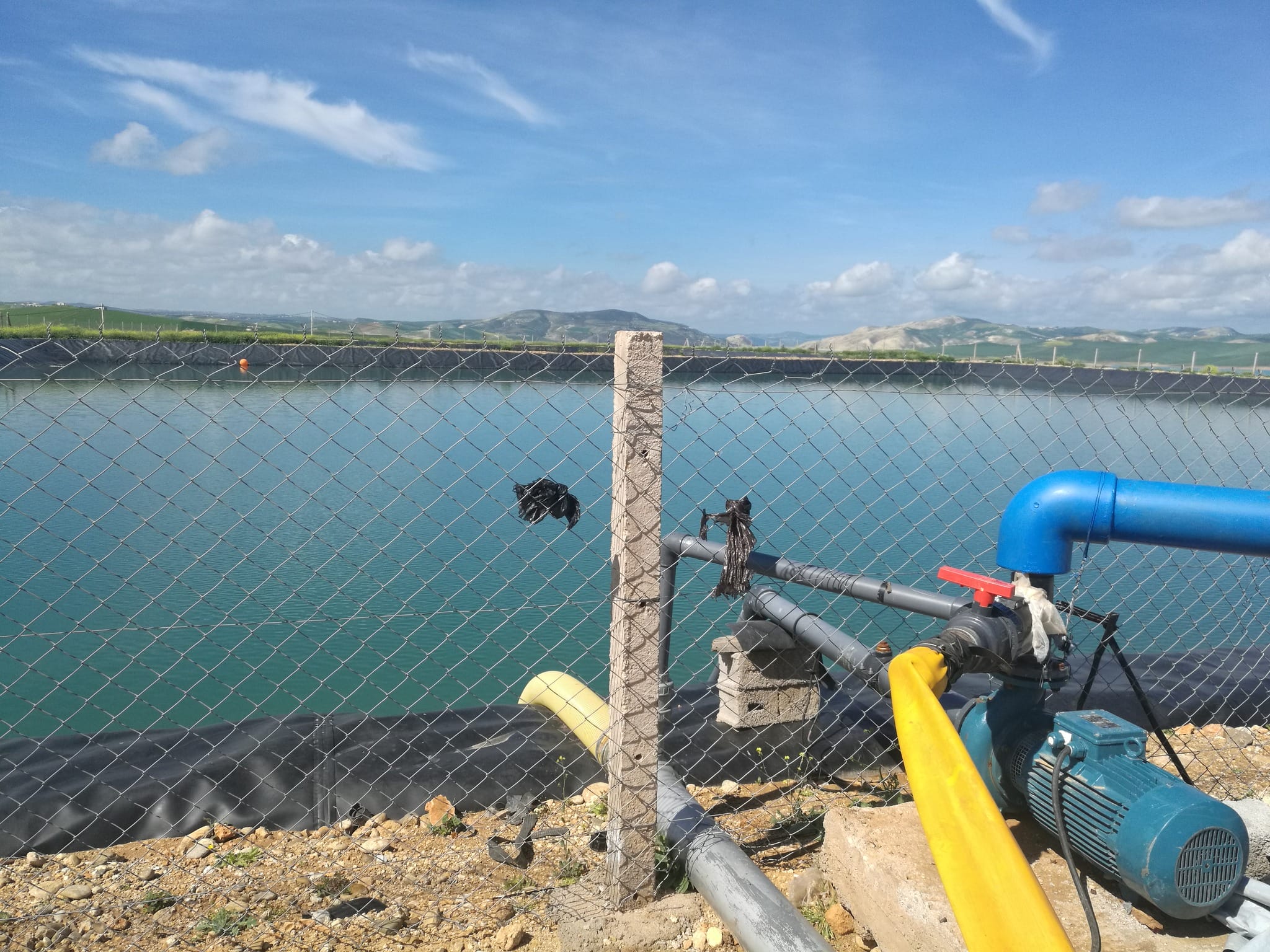

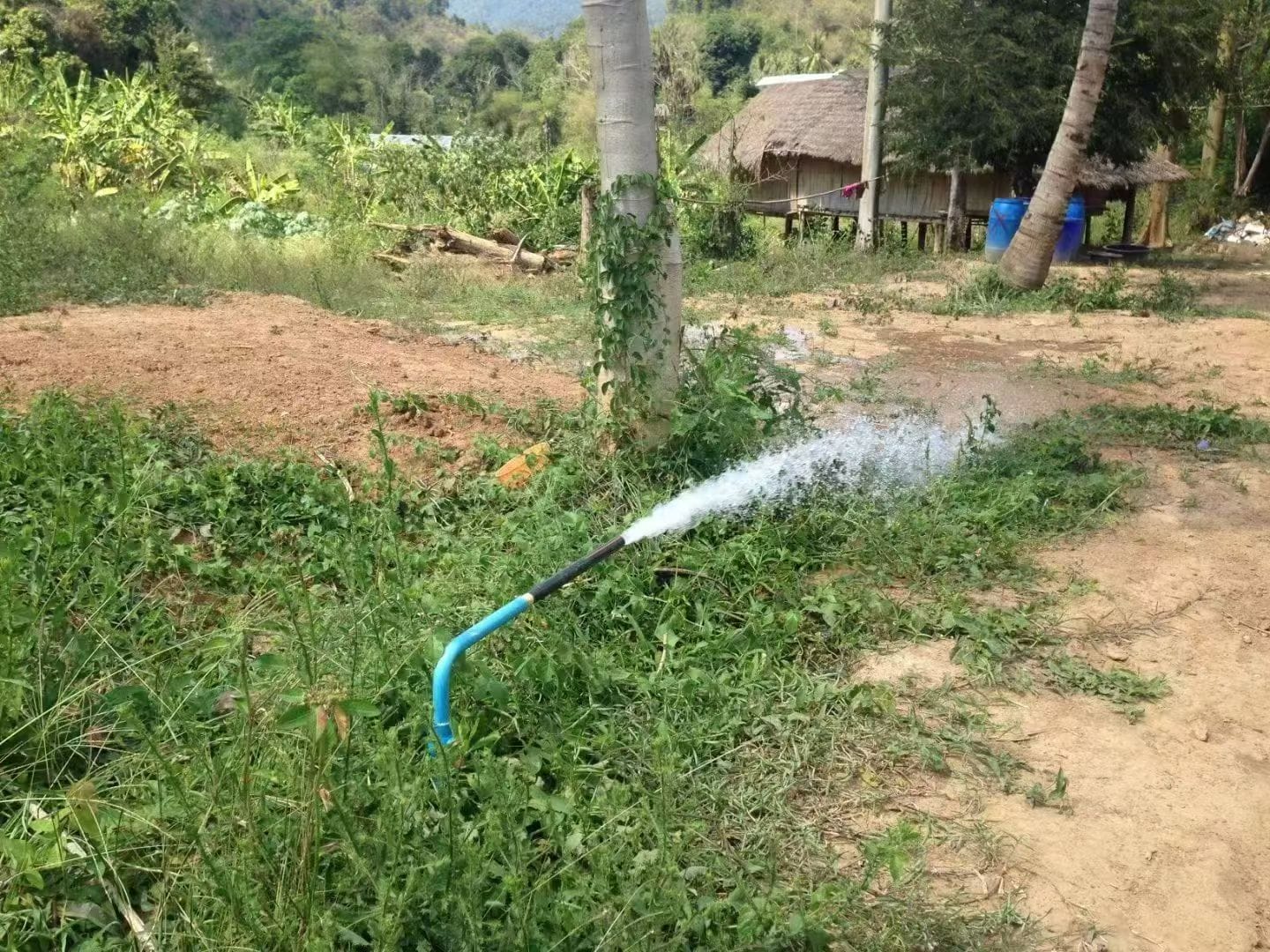

Ahmed needed water moving at the pond, not just a neat solar array. The first photos focus on the parts that decide whether the installation is credible: discharge water, pump-side piping, and the inverter mounted inside its cabinet.
For another farm project, these are the first things to compare with your own site: pump position, pipe layout, cabinet location, and whether the PV array has enough space and sunlight.
Installation Details

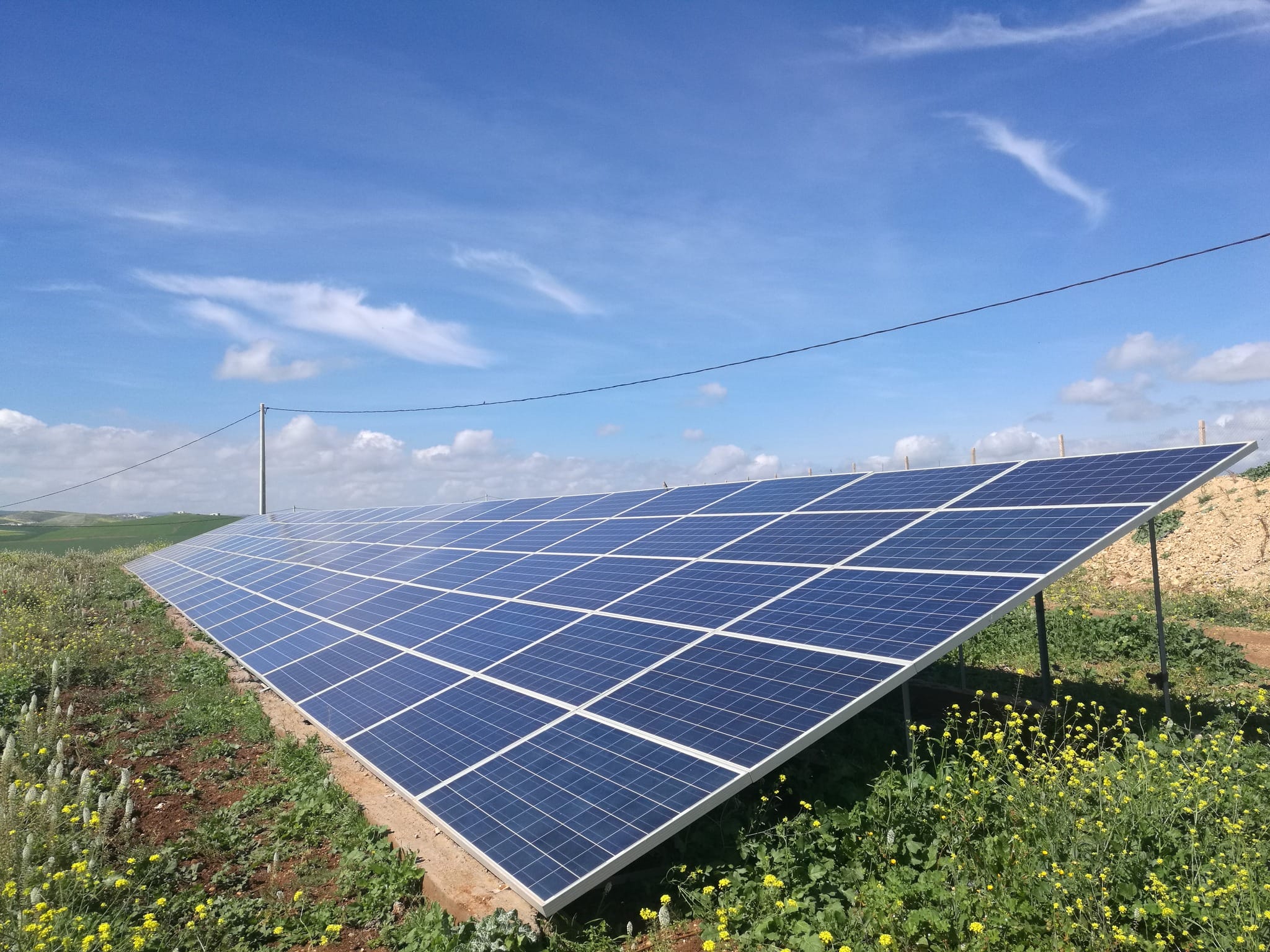

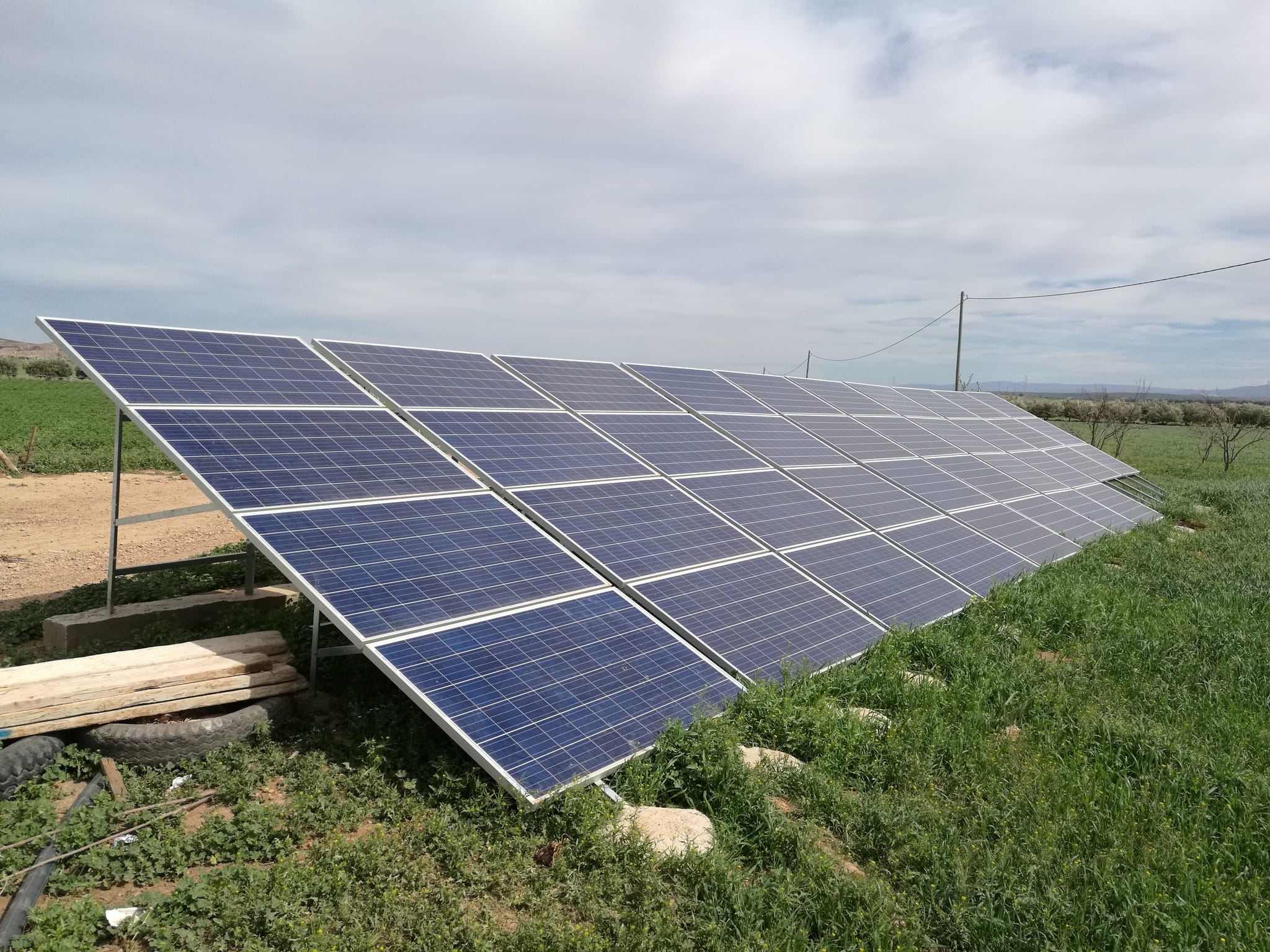

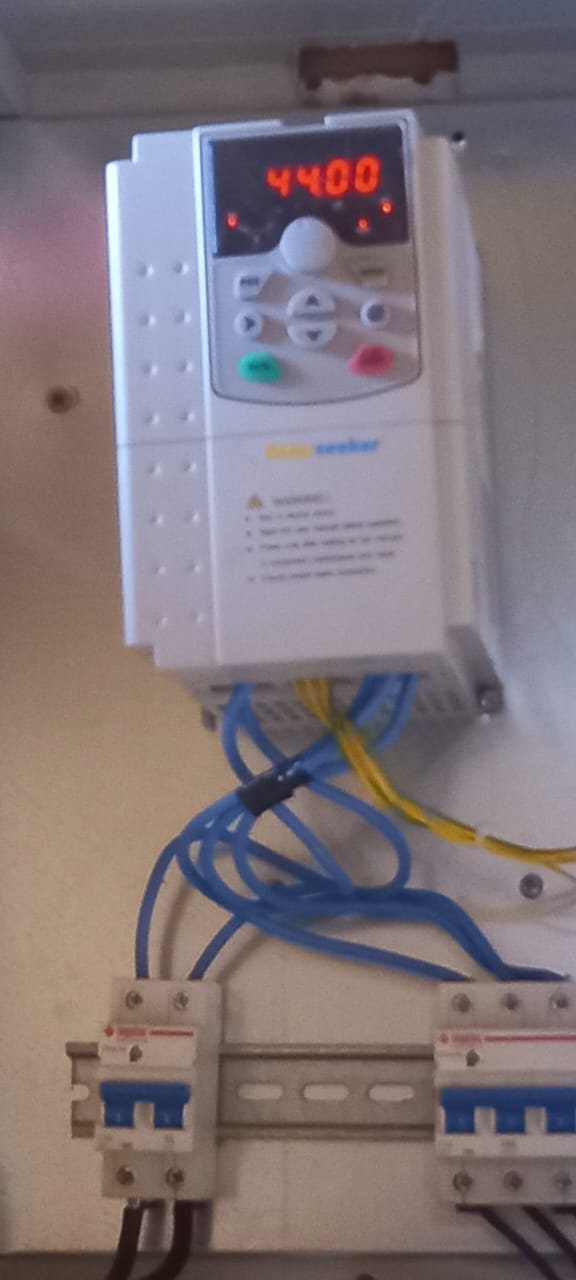

PV array, wiring and site views behind the project

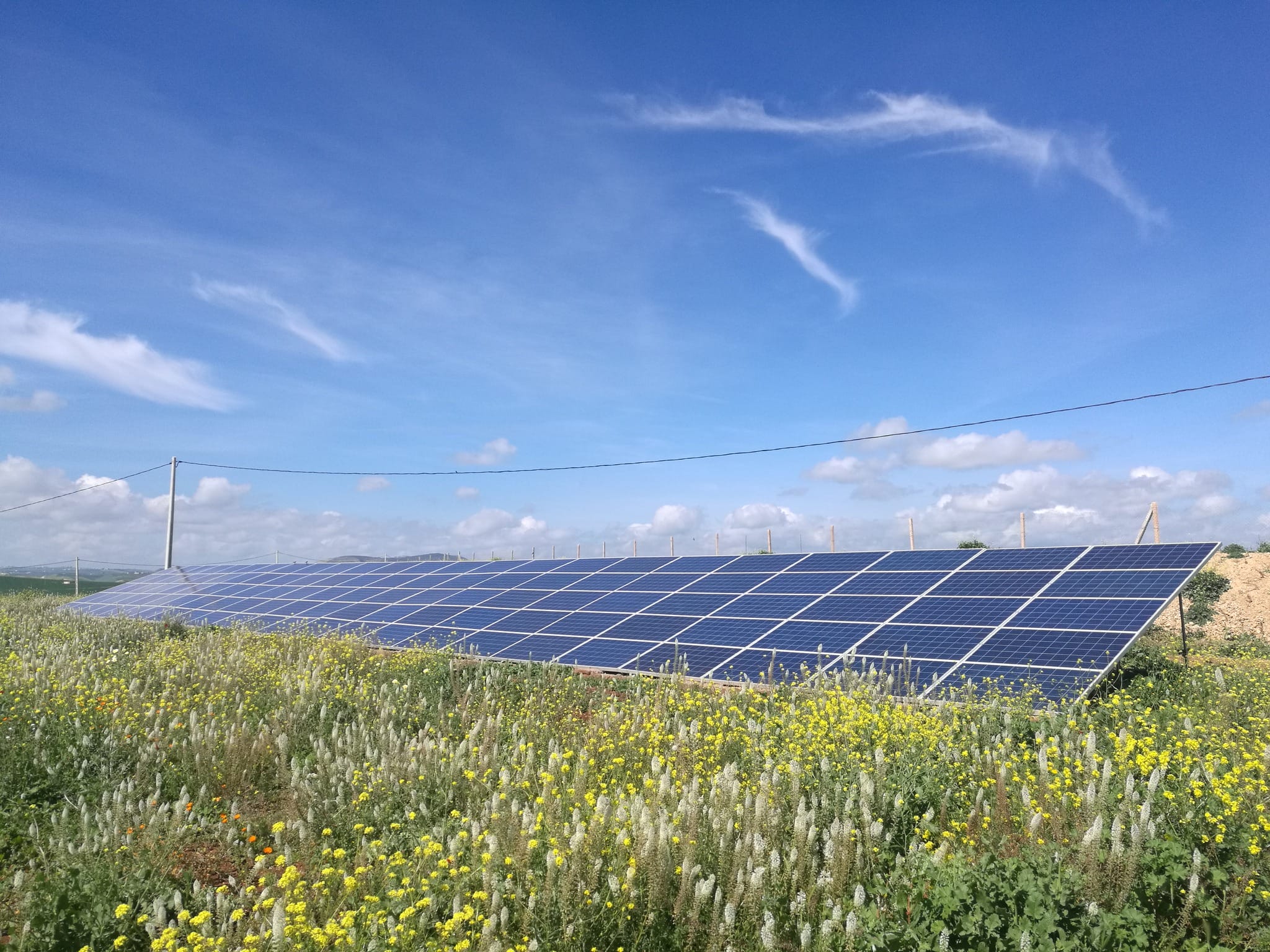

The second group records the parts an installer normally checks after the water test: panel rows, cable routing, cabinet wiring and service access. Those details decide whether the system is easy to inspect after the first season.
Installer Confidence
The hard part was not buying panels. It was making the pump, inverter and site conditions fit the same plan.
For a pond pump, the buyer often starts with a simple request: replace the fuel pump with solar. The actual work is more specific. The inverter must match the motor, the PV array must stay inside the inverter input range, and the installation must survive heat, dust and outdoor service work.
In Marrakech, that meant a 380V inverter on a three-phase pond pump, with enough PV capacity for farm use and a cabinet installation that could be inspected after commissioning.
If your project is similar, do not copy the model blindly. Send the pump nameplate, head, water target, panel wattage and site photos. SolarSeeker can check the inverter, PV stringing and cabinet plan before you commit to the build.
What SolarSeeker needs before recommending a model
Pump nameplate: voltage, phase, power, current and frequency.
Water source: pond depth, suction/discharge layout, total head and pipe distance.
Water demand: target flow, daily runtime and storage plan.
PV plan: panel wattage, string design, mounting space and local sunlight condition.
Product Path
Next product pages for a similar pond-pump project
Start with the inverter range, then check the SP4 model, pump selection, cabinet integration and kit options based on how much of the system SolarSeeker needs to match.
Solar Water Pump Inverter
Main hub for inverter range, voltage selection and project matching.
Open inverter hub

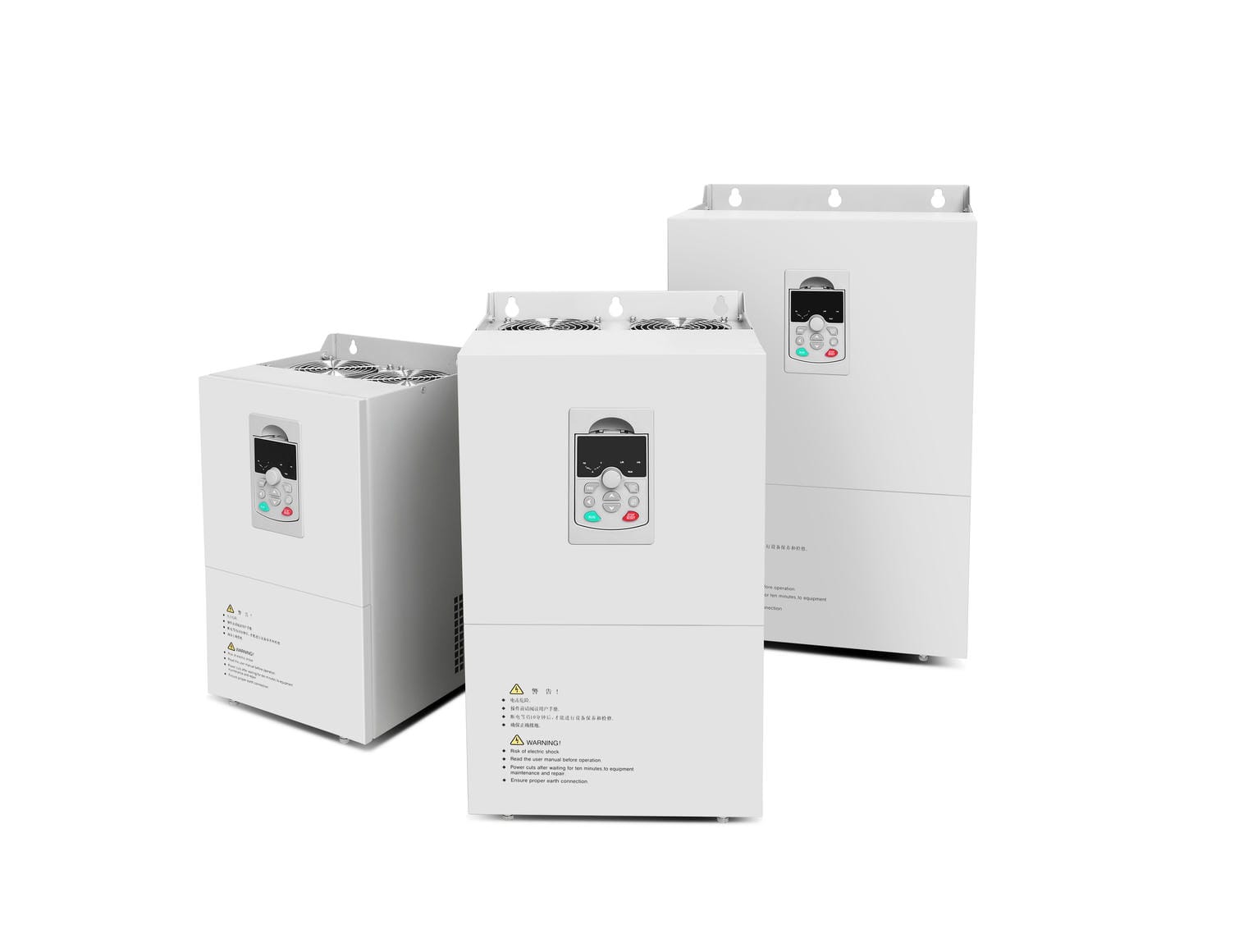

SP4 380V Inverter
For 380V three-phase pump projects such as pond, irrigation and deep-well systems.
Open SP4
Submersible Pump
For pump body, head, flow and water-source selection.
Select pump
Solar Pump Cabinet
For protection, wiring, project integration and easier service.
View cabinet
Pump Kits
For panel, inverter/controller, pump and accessory package planning.
View kits
FAQ
Questions before quoting a similar Morocco pond-pump system
Is this Morocco case mainly about a pump or an inverter?
It is a project case for a SolarSeeker SP4007 solar pump inverter driving a 7.5HP three-phase submersible pond pump. The pump matters, but the main lesson is inverter matching, PV sizing and field commissioning.
Why use SP4007 for this pond pump?
In this project, SP4007 was used as a 7.5kW 380V three-phase inverter for a 7.5HP three-phase pump. For a new site, SolarSeeker still needs the pump nameplate, current, head and PV string design before confirming the model.
How large was the PV array?
The Marrakech system used 16 pieces of 600W solar panels, giving a listed PV capacity of 9.6kW.
Can SolarSeeker support a similar project outside Morocco?
Yes. Send the pump nameplate, water target, site photos and PV plan. SolarSeeker can check pump compatibility, inverter selection, cabinet needs and installation details for similar farm or irrigation projects.
Planning a similar pond or irrigation pump project?
Send the pump nameplate, pond layout, target flow, PV panel plan and project country. SolarSeeker will check whether your site needs SP4007, another SP4 model, a cabinet, a pump kit or a different configuration.
